Non-Metallic Wall-Mounting Enclosures

PLA_DoubleDoor

Totally enclosed IP65 wall-mounting or floor-standing GRP enclosures & cabinets.

Other versions:

PLAT Open top + Canopy IP44; PLAZ Open floor IP54; PLAZT Open top + Canopy and open floor IP44.

UV stabilized GRP material, resistant to most chemical agents and corrosive atmospheres.

Self-extinguishing according to IEC 695-2-1 (960°), and Halogen-free.

Wall mounting or floor standing.

Reversible door, opening to 120º. Maximum permissible load: 30 kg/m2.

Door closure system outside the sealed zone.

Wall-Mounting

Non-Metallic

GRP – Glassfibre Reinforced Polyester

Corrosive

PLM54TG

Thalassa PLM GRP Enclosures

Monobloc wall-mounting enclosure of SMC sheet-mold-compound polyester reinforced with fiberglass.
UV stabilized GRP material, resistant to most chemical agents and corrosive atmospheres.
Self-extinguishing according to IEC 695-2-1 (960°), and Halogen-free.

1-piece body moulded by high-temperature-high-pressure compression.
Door closure system outside the sealed zone.

Top and bottom canopies allow reversing the door opening, by inverting the enclosure.
Integral bosses for installation of accessories by threaded brass inserts.

Version with toughened glass window.
Colour: Light Grey RAL7035.

Operating temperature range: –50 to 150°C.

Wall-Mounting

Non-Metallic

GRP – Glassfibre Reinforced Polyester

Corrosive

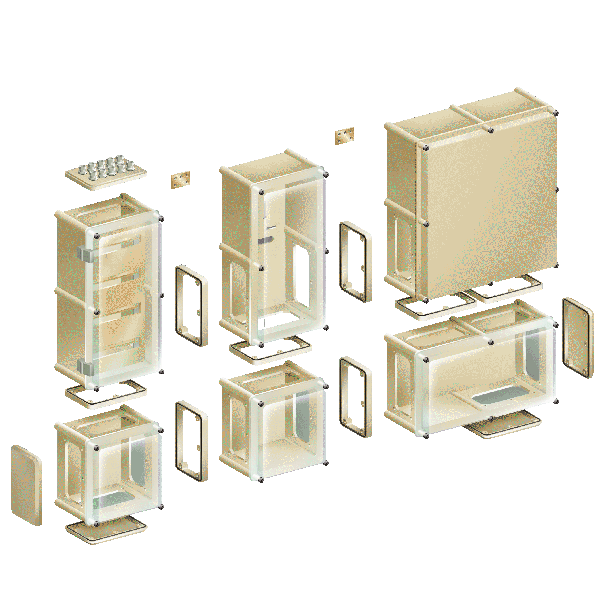

Thalassa PLS GRP Enclosures

Robust insulated modular corrosion-proof enclosures.
Body made from SMC sheet-mould-compound Glassfibre Reinforced Polyester.

3 types of cover available, in 2 depths 45mm or 95mm:
– Transparent polycarbonate cover (PLS), with neoprene gasket
– Plain GRP cover (PLSP) with continuous polyurethane gasket
– Plain polycarbonate cover (PLSC), with neoprene gasket
Can be coupled by all their side surfaces.
External hinges can be fitted.

Self-extinguishing, halogen-free, and good resistance to UV.
Excellent resistance to most chemicals
Operating temperatures from -50°C to +150°C
Closure by captive slotted polyamide screws.
Colour: RAL7035 Light Grey

Wall-Mounting

Non-Metallic

GRP – Glassfibre Reinforced Polyester

Corrosive

PLS-3
tbs-tbp-1

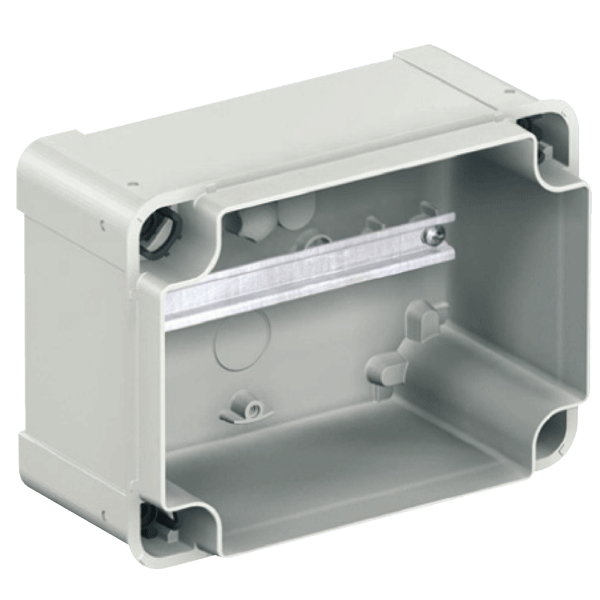

Thalassa TBS-TBP Industrial Boxes

Insulating industrial boxes:
– ABS for indoor industrial applications (IK07).
– Polycarbonate for enhanced impact resistance (IK08) and for outdoor or UV-exposed applications.

Transparent cover version available with: ABS base and polycarbonate cover, or fully polycarbonate box.
Closure by 4 plastic captive screws with coarse thread outside the sealed area.
Reinforced edges of the cover ensure robustness and support during machining.
Adaptable hinges available for all 20mm and 40mm deep covers.

Sealing by continuous blue polyurethane gasket in a protective channel.
Internal integral bosses allow for fixing of mounting plate or direct attachment of DIN rails and other equipment by self-tapping screws provided.

Mounting of the box by corner channels outside of the sealed area, or by wall-mount brackets, or by direct mounting through the base (sealing plugs provided).

Wall-Mounting

Non-Metallic

ABS & Polycarbonate

Corrosive

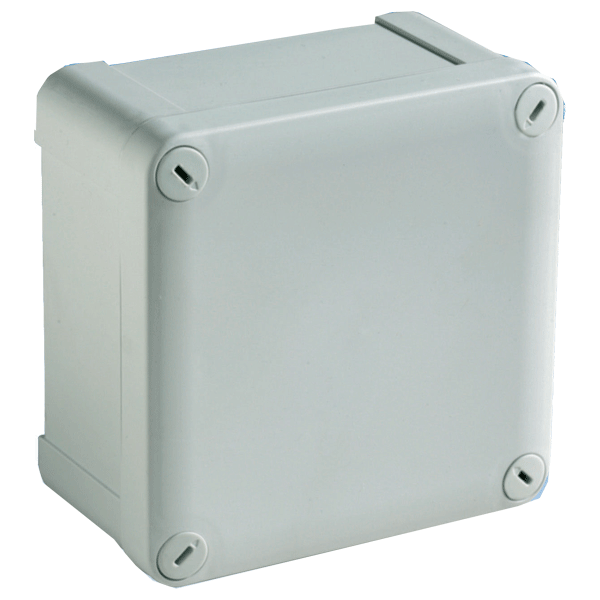

Thalassa MUREVA Junction Boxes

Junction Boxes made of halogen-free, self-extinguishing (650°C) insulating material.

Boxes up to 105x65x55 mm: ABS base and Polypropylene Lid.

Larger Boxes: Polypropylene base and lid.

Resistant to common chemicals and atmospheric corrosion.

Used as junction / branch boxes for all types of cable and conduit installations.

Grommet entries with stepped EVA membrane for cables and conduits.

Direct insertion of cables without tools up to diameter 14 mm.

Insertion of cables > Ø 14 mm and of conduits by removing step of the

appropriate entry diameter.


Wall-Mounting

Non-Metallic

ABS Plastic

Corrosive

muvera-2
