ECOR-EEX ATEX-approved Enclosures

ETA ATEX-Certified Wall-mounting Enclosures

General
ETA wall-mounting enclosures ST…EE and ECOR…EEX comply with the European Directive 2014/34/UE that aims to ensure the free circulation of the products concerned in EU countries, and applies to equipment and protective systems to be used in potentially explosive atmospheres (ATEX), for the presence of flammable gases, vapours, mists or dusts.
According to the reference standards EN60079-0; 7 and 60079-31 boxes are “electric enclosures” classified for category II and zones 1, 2, 21, 22 for gas and dust (GD) with protection method EX-e, EX-tb. Protection methods are based on the concept of prevention. To comply with this, the directive establishes high structural standards and restrictive features of equipment and components, and strict periodic testing of the approved products under UNI EN13980 and ISO 9001.

Conformity
• Ex II 2G
• Ex e IIC Gb
• Ex II 2GD
• Ex tb IIIC Db

ETA ST..EE Mild Steel Wall-mounting Enclosures

Characteristics
Enclosure manufactured from sheet steel supplied without cable entry plate.
Galvanised steel mounting plate with slotted corners.
Door with 3mm double bar key lock of chrome-zinc alloy, and continuous polyurethane foam seal.
External anti-rotation and anti-slip earth stud M6 copper-plated steel, welded onto the enclosure.
It is a requirement for the enclosure to be installed by means of 4 wall-mounting brackets.

Supply
Enclosure with external welded earth stud.
Galvanised mounting plate.
Hardware for earth connection and mounting plate.

Protection Rating
• IP66 complying with IEC EN62208; EN62262
• NEMA 4 (ST…EE) complying with UL508A; UL50
• protection degree guaranteed by the two-component polyurethane foam seal
• impact resistance IK10 complying with IEC EN62208; EN62262.

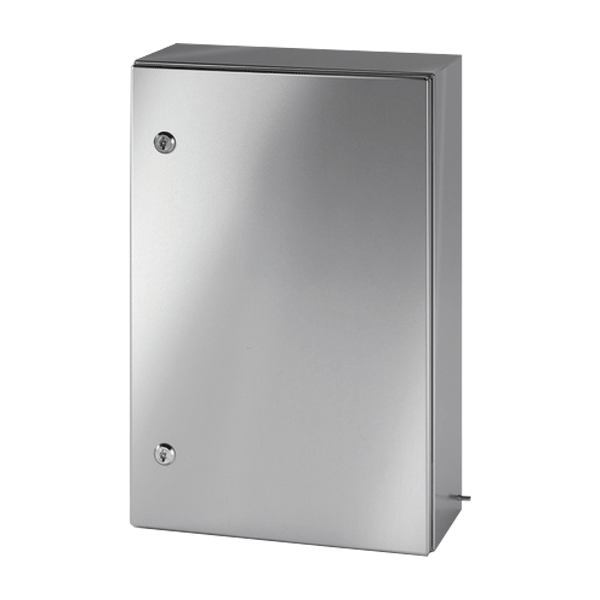

ETA ECOR…EEX Stainless Steel Wall-mounting Enclosures

Characteristics
Enclosure manufactured from satin finish stainless steel 304L sheet (316L on request) without cable entry plate.
Galvanised steel mounting plate with slotted corners.
Hinges in stainless steel.
External anti-rotation and anti-slip earth stud M6 copper-plated steel, welded onto the enclosure.
It is a requirement for the enclosure to be installed by means of 4 wall-mounting brackets.

Supply
Enclosure with external welded earth stud.
Galvanised mounting plate.
Hardware for earth connection and mounting plate.

Protection Rating
• IP66 complying with IEC EN62208; EN62262
• NEMA 4X (ECOR…EEX) complying with UL508A; UL50
• protection degree guaranteed by the two-component polyurethane foam seal
• impact resistance IK10 complying with IEC EN62208; EN62262.

Description

ATEX-approved Mild Steel & Stainless Steel Enclosures

Width Height Depth Mild Steel RAL7035 Stainless Steel 304L
200 300 150 ST2315EE ECOR2-315EEX
300 300 150 ST3315EE ECOR3-315EEX
300 400 150 ST3415EE ECOR3-415EEX
300 400 200 ST3420EE ECOR3-420EEX
300 500 150 ST3515EE
300 500 200 ST3520EE
400 300 150 ST4315EE ECOR4-315EEX
400 300 200 ST4320EE
400 400 200 ST4420EE ECOR4-420EEX
400 400 250 ECOR4-425EEX
400 500 150 ST4515EE
400 500 200 ST4520EE ECOR4-520EEX
400 500 250 ST4525EE
400 600 200 ST4620EE ECOR4-620EEX
400 600 250 ST4625EE ECOR4-625EEX
400 600 400 ST4640EE
500 500 200 ST5520EE ECOR5-520EEX
500 500 250 ECOR5-525EEX
500 700 200 ST5720EE ECOR5-720EEX
500 700 250 ST5725EE ECOR5-725EEX
600 400 200 ST6420EE ECOR6-420EEX
600 400 300 ST6430EE
600 600 200 ST6620EE ECOR6-620EEX
600 600 250 ECOR6-625EEX
600 600 300 ST6630EE ECOR6-630EEX
600 600 400 ST6640EE
600 800 200 ST6820EE ECOR6-820EEX
600 800 250 ST6825EE ECOR6-825EEX
600 800 300 ST6830EE ECOR6-830EEX
600 800 400 ST6840EE
600 1000 250 ST61025EE
600 1000 300 ST61030EE
600 1000 400 ST61040EE
800 800 300 ST8830EE ECOR8-830EEX
800 800 400 ST8840EE
800 1000 300 ST81030EE ECOR8-1030EEX
800 1000 400 ST81040EE
600 1200 300 ST61230EE ECOR6-1230EEX
800 1200 300 ST81230EE ECOR8-1230EEX

Wallmount Brackets Steel SDWC010
Wallmount Brackets Stainless SDWCX010
