Thalassa TBS-TBP Industrial Boxes

SEUE TBS & TBP Plastic Industrial Boxes

Characteristics
Insulating industrial boxes:
– ABS for indoor industrial applications (IK07).
– Polycarbonate for enhanced impact resistance (IK08) and for outdoor or UV-exposed applications.
Transparent cover version available with: ABS base and polycarbonate cover, or fully polycarbonate box.
Closure by 4 plastic captive screws with coarse thread outside the sealed area.
Reinforced edges of the cover ensure robustness and support during machining.

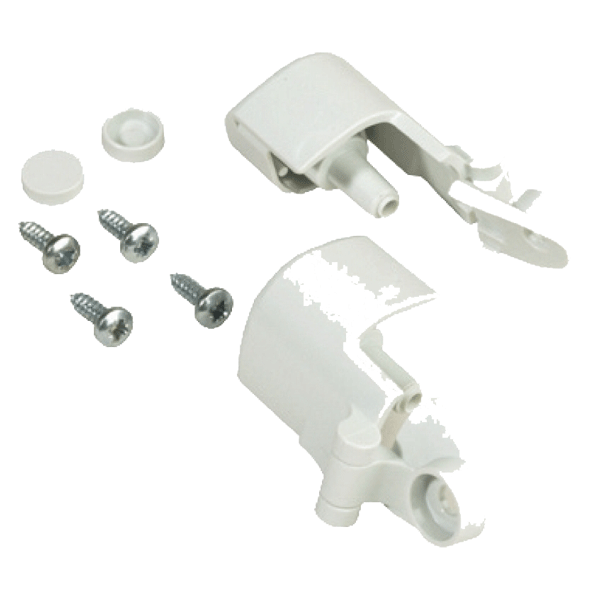

Adaptable hinges available for all 20mm and 40mm deep covers.
Sealing by continuous blue polyurethane gasket in a protective channel.
Internal integral bosses allow for fixing of mounting plate or direct attachment of DIN rails and other equipment by self-tapping screws provided.
Mounting of the box by corner channels outside of the sealed area, or by wall-mount brackets, or by direct mounting through the base (sealing plugs provided).
Colour: RAL7035 Light Grey

ABS boxes:
• glow wire resistance: 650°C
• usage temperature: -25°C…+60°C
• installation temperature: -15 C…+40°C

Polycarbonate boxes:
• glow wire resistance: 960°C
• usage temperature: -25°C…+80°C
• installation temperature: -15°C…+60°C

Supply
Base, cover, screws, and sealing caps.
Mounting plate to be ordered separately.

Protection Rating
IP66 according to EN 60529
Mechanical impact resistance: IK09
UL certification and NEMA classification 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Class II double-insulation.

Description

TBS / TBP Plastic Industrial Boxes – ABS & Polycarbonate

External Dimensions Internal Dimensions Plain Lid ABS Clear Lid ABS-PC Plain Lid PC Clear Lid PC Chassis
Height Width Depth Height Width Depth
74 74 54 65 65 47 TBS775 TBP775
89 89 54 80 80 47 TBS885 TBP885
116 74 62 105 65 55 TBS1176 TBP1176
116 74 94 105 65 85 TBS1179H
116 116 62 105 105 55 TBS11116 TBP11116
116 116 133 105 105 125 TBS111113H
138 93 72 125 80 65 TBS1397 TBS1397T TBP1397 TBP1397T
164 121 87 150 105 80 TBS16128 TBS16128T TBP16128 TBP16128T AMPM1916TB
192 121 87 175 105 80 TBS19128 TBS19128T TBP19128 TBP19128T AMPM1916TB
192 121 105 175 105 100 TBS191210H TBS191210HT TBP191210H TBP191210HT AMPM1916TB
192 164 87 175 150 80 TBS19168 TBS19168T TBP19168 TBP19168T AMPM1916TB
192 164 105 175 150 100 TBS191610H TBS191610HT TBP191610H TBP191610HT AMPM1916TB
241 194 87 225 175 80 TBS24198 TBS24198T TBP24198 TBP24198T AMPM2419TB
241 194 107 225 175 100 TBS241910 TBS241910T TBP241910 TBP241910T AMPM2419TB
241 194 107 225 175 100 TBS241910H TBS241910HT TBP241910H TBP241910HT AMPM2419TB
241 194 127 225 175 120 TBS241912H TBS241912HT TBP241912H TBP241912HT AMPM2419TB
291 241 88 275 225 80 TBS29248 TBS29248T TBP29248 TBP29248T AMPM2924TB
291 241 128 275 225 120 TBS292412 TBS292412T TBP292412 TBP292412T AMPM2924TB
291 241 128 275 225 120 TBS292412H TBS292412HT TBP292412H TBP292412HT AMPM2924TB
291 241 168 275 225 160 TBS292416H TBS292416HT TBP292416H TBP292416HT AMPM2924TB
341 291 128 325 275 120 TBS342912 TBS342912T TBP342912 TBP342912T AMPM3429TB
341 291 168 325 275 160 TBS342916H TBS342916HT TBP342916H TBP342916HT AMPM3429TB

Wallmount Brackets AEDH20TB
Hinges 20mm Lid AEDH40TB
Hinges 40mm Lid AEFTB
